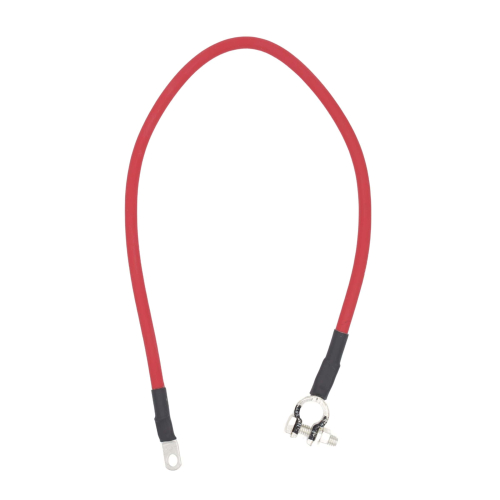

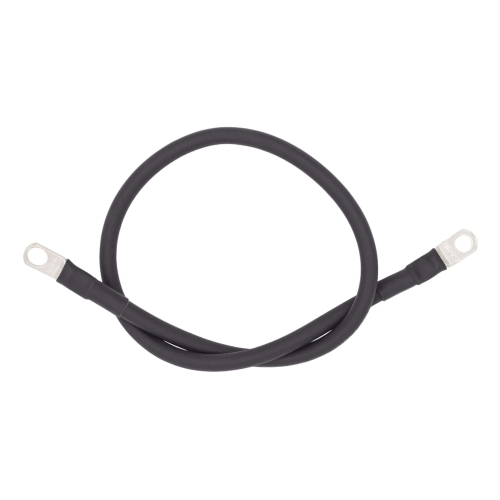

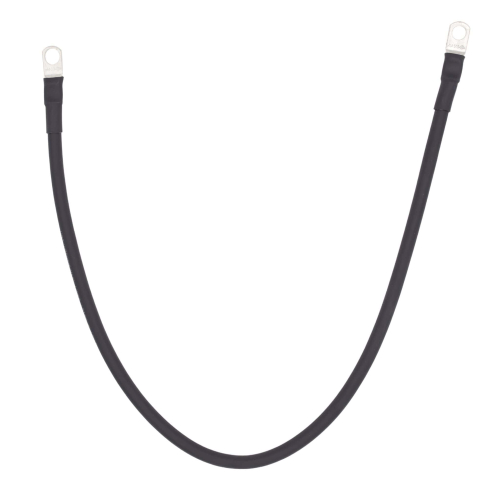

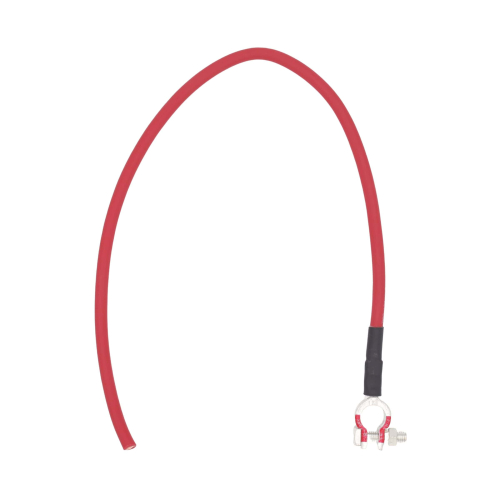

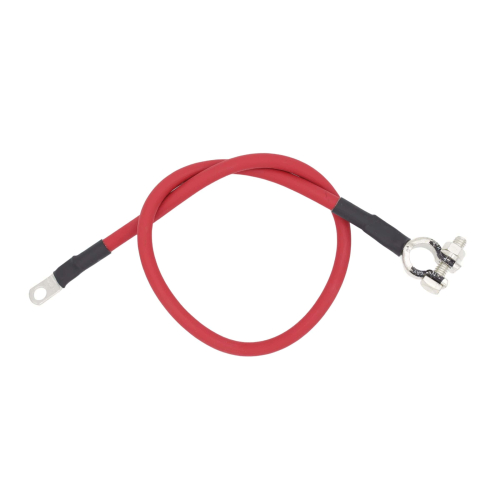

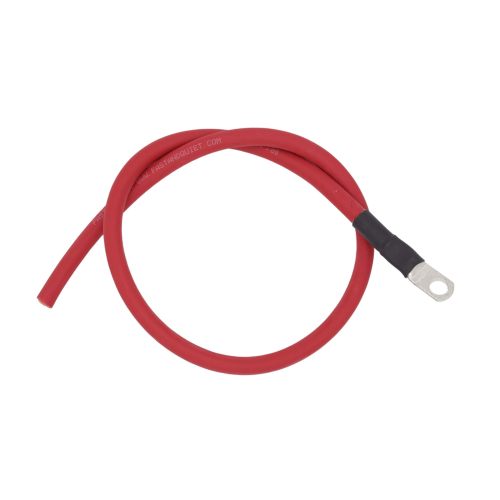

4 AWG Gauge Custom Battery Cable Copper Wire (Black or Red)

Uses for this product are battery cables for Auto, EV Conversions, RV, Golf Cart, Marine, Inverter, Solar, Welding, Trolling Motors, and many more.

The two colors available are red and black. The cable metal is 100% copper. There are multiple lengths you can choose from. If the length that you were looking for is not there, please email us. The lugs are heavy-duty and each cable has copper lugs that are tin-plated. The different hole sizes we offer are 1/4", 5/16”, and 3/8”. If you're looking for a different size, please email us and we can work something out. You can have the same lug on both sides or different ones on each side. The lugs have a closed-end design to keep out unnecessary moisture. This reduces the likelihood of wire corrosion. Each end of the cable also has black heat shrink. The cable length is measured at the cut point of the wire. This means that the assembled cable is longer than the specified length by around 1 inch. Our cables are 100% made in the United States. If you have any questions, please email us. We have a 30-day return policy.

This listing is for one or two cables. If you select Red and Black, you will be ordering one red cable and one black cable. If you select just Red or just Black, you will receive one cable.

If you want multiple cables of different lengths and/or ends, then add each cable to the cart.

Wire Specifications
Approvals 630 electric welders, Meets SAE J1127 and ADTM B-172 standards, RoHS Compliant.
Feet Per Pound 6.9
Resistant To Cuts, Tears, Abrasion, Water, Oil, Grease, and Flame
Stranding 364
Nominal Outside Diameter 0.333 IN
Insulation Thickness 0.065 IN
Insulation Material High-grade EPDM
Maximum Amps 150A
Heat Shrink Color Black
Heat Shrink Type Dual Wall Adhesive Lined
Max Temperature Rating 105°C (221°F)
Min Temperature Rating -50°C (-58°F)
Conductor Material Copper
Maximum Voltage 600V
Conductor Size 4 AWG

Copper Stranded Wire

The use of copper strands ensures not only superior conductivity but also reliability in various applications. Our cables are designed to deliver optimal power transfer, making them ideal for automotive and electrical projects. What sets our battery cables apart is the strategic incorporation of copper-stranded wire, providing not just efficiency but also flexibility. This makes installation a breeze, allowing you to tailor the cables to your specific needs.

Flexible

The battery cable set is expertly crafted using high-quality welding cable, ensuring exceptional performance and durability. The use of welding cable not only increases robustness but also imparts remarkable flexibility to the cables. This flexibility is a key feature, making installation and routing hassle-free, especially in tight spaces.

Dual Wall Adhesive Lined Heat Shrink

Our battery cable sets feature adhesive-lined heat shrink. Unlike regular heat shrink, our specially designed heat shrink comes with a built-in adhesive that adds an extra layer of protection to your connections. This unique feature drastically reduces the likelihood of water and moisture penetrating the joint, ensuring a secure and durable bond. The adhesive-lined heat shrink not only provides a tight and reliable seal but also adds an element of insulation, making our battery cable set ideal for various applications.

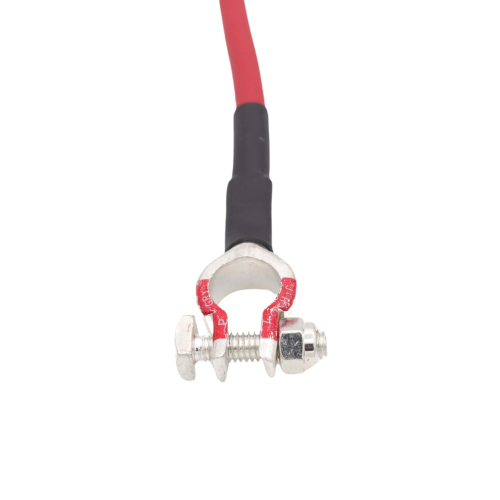

Copper Tin-Plated Lugs

Our battery cable sets feature copper lugs which are tin-plated for unparalleled performance and longevity. The lugs have a closed-end design to keep out unnecessary moisture. These copper lugs provide exceptional conductivity, ensuring efficient power transfer for your automotive or electrical applications. The added tin-plated coating acts as a safeguard, shielding the lugs from corrosion and environmental wear, thus significantly extending their lifespan.

  • 98.08%
  • 1.92%
  • 0%
  • 0%
  • 0%

Reviews Over 4 AWG Gauge Custom Battery Cable Copper Wire

Total Reviews (208)
click here write review to add review for this product.


4 AWG Gauge Custom Battery Cable Copper Wire

  • Brand: Fast and Quiet
  • Product Code: 4BattCable
  • Availability: In Stock
  • Free Shipping
  • $0.00


Available Options
