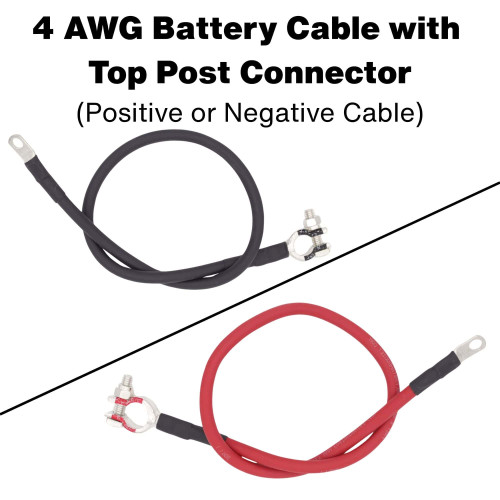

4 AWG Custom Battery Cable with Top Post Connector

Applications for this product include battery cables for Automobiles, electric vehicle conversions, RVs, Golf Carts, Marine Use, Inverters, Solar Systems, Welding, Trolling Motors, and many more.

We automatically match the cable color to the connector type for proper polarity: positive connectors are paired with red cables, and negative connectors are paired with black cables. The cable is made of 99.99% copper metal. This cable is sold in multiple lengths. If the length you need is not listed, please contact us. The terminals are heavy-duty, and each cable has copper connectors that are tin-plated. On one end of the cable, we offer four different lug hole sizes: 1/4", 5/16”, and 3/8”. On the other end, we offer both the positive and negative versions of the top post connector.

Lugs on both ends can be found on a separate listing. The connectors have a closed-end design to keep out unnecessary moisture. This reduces the likelihood of wire corrosion. Each end of the cable also has black heat shrink. The cable length is measured at the cut point of the wire. This means that the assembled cable is longer than the specified length by around 1 inch. Our cables are 100% made in the United States.

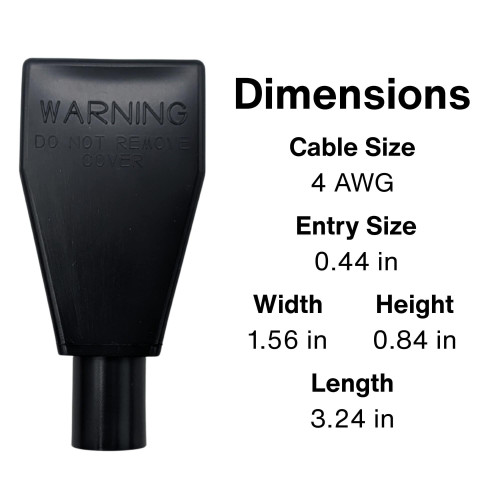

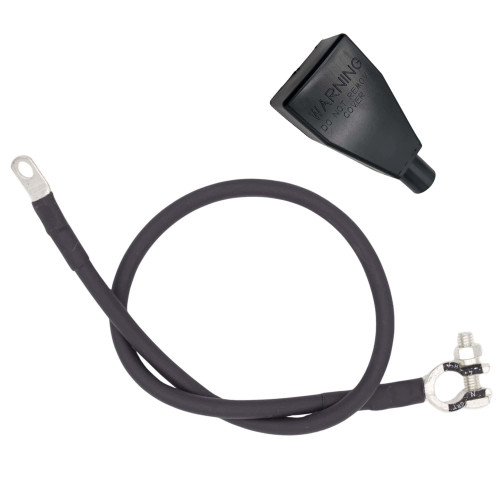

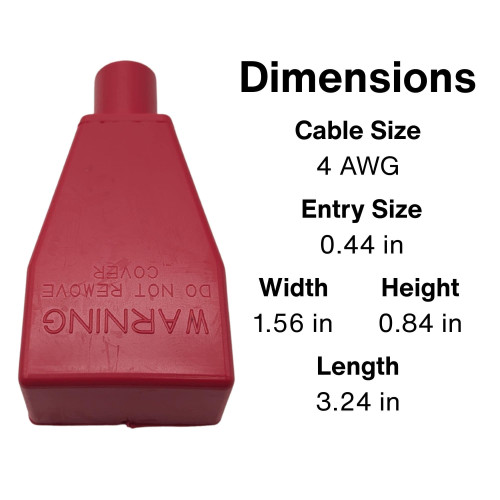

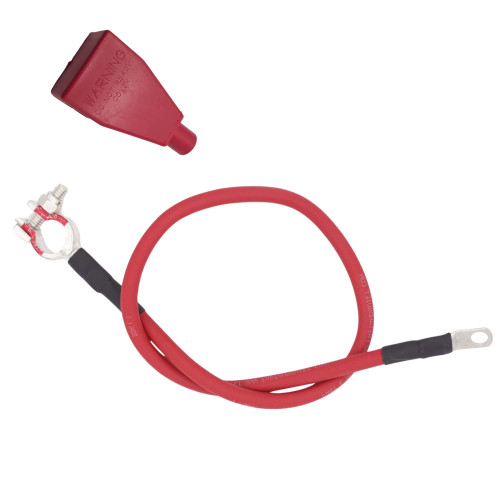

We also offer an optional protective boot for the top-post connectors, which can be selected directly from the dropdown on the listing. The boot color will automatically match the connector type—positive connectors come with a red boot, and negative connectors come with a black boot. If you have any questions, please email us.

Wire Specifications
Approvals 630 electric welders, Meets SAE J1127 and ADTM B-172 standards, RoHS Compliant.
Pounds per Foot (lb/ft) 0.15
Resistant To Cuts, Tears, Abrasion, Water, Oil, Grease, and Flame
Stranding 364
Nominal Outside Diameter 0.333 IN
Insulation Thickness 0.065 IN
Insulation Material High-grade EPDM
Maximum Amps 150A
Heat Shrink Color Black
Heat Shrink Type Dual Wall Adhesive Lined
Max Temperature Rating 105°C (221°F)
Min Temperature Rating -50°C (-58°F)
Conductor Material Copper
Maximum Voltage 600V
Conductor Size 4 AWG

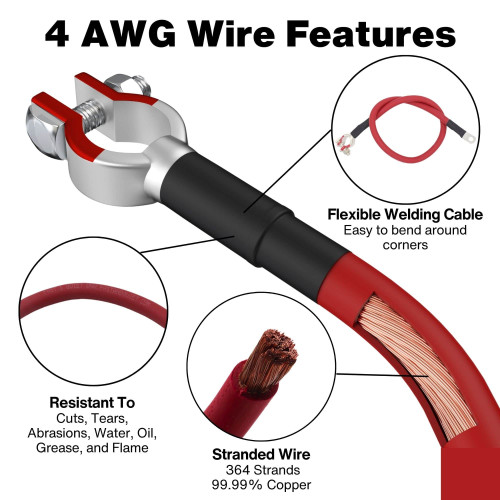

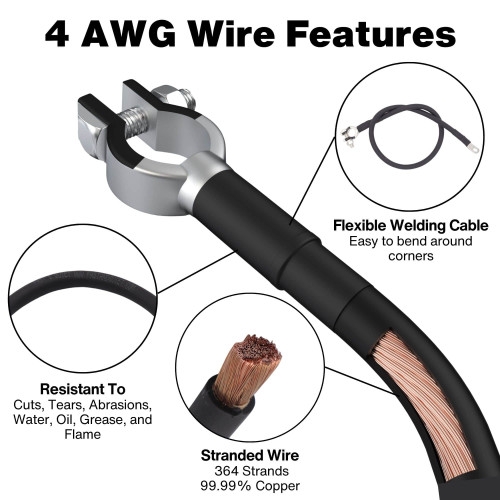

Copper Stranded Wire

The use of copper strands ensures not only superior conductivity but also reliability in various applications. Our cables are designed to deliver optimal power transfer, making them ideal for automotive and electrical projects. What sets our battery cables apart is the strategic use of copper-stranded wire, which provides not just efficiency but also flexibility. This makes installation a breeze, allowing you to tailor the cables to your specific needs.

Flexible

The battery cable set is expertly crafted using high-quality welding cable, ensuring exceptional performance and durability. The use of welding cable not only increases robustness but also imparts remarkable flexibility to the cables. This flexibility is a key feature, making installation and routing hassle-free, especially in tight spaces.

Dual Wall Adhesive Lined Heat Shrink

Our battery cable sets feature adhesive-lined heat shrink. Unlike regular heat shrink, our specially designed heat shrink comes with a built-in adhesive that adds an extra layer of protection to your connections. This unique feature drastically reduces the likelihood of water and moisture penetrating the joint, ensuring a secure and durable bond. The adhesive-lined heat shrink not only provides a tight and reliable seal but also adds an element of insulation, making our battery cable set ideal for various applications.

Copper Tin-Plated Connectors

Our battery cable set features copper connectors, which are tin-plated for unparalleled performance and longevity. It has a closed-end design to keep out unnecessary moisture. The copper connector provide exceptional conductivity, ensuring efficient power transfer for your automotive or electrical applications. The added tin-plated coating acts as a safeguard, shielding the connectors from corrosion and environmental wear, thus significantly extending their lifespan.
