Fuse Kit (2) 1000VDC Low Current

This comprehensive kit features your choice of two fuses, two fuse holders, and a DIN rail for convenient mounting. Tailored to your specific requirements, we also offer other fuse kits with additional fuses and holders to suit varied needs. Customize your selection by choosing the exact fuse you need for each bundle. By bundling these items together, you not only streamline your purchase but also enjoy cost savings. Alternatively, individual components are available for standalone purchase if you require only one specific item.

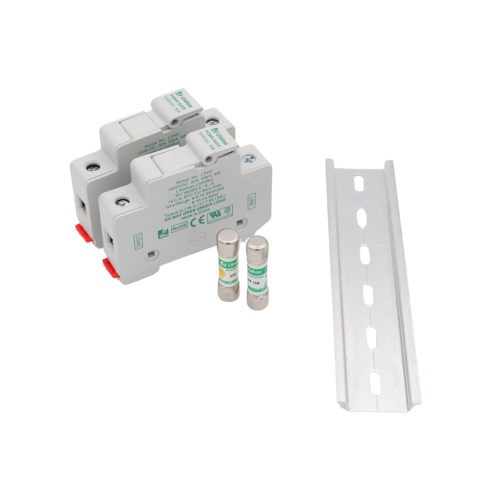

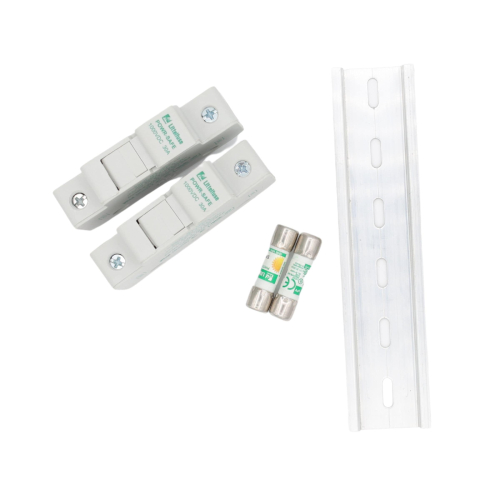

Kit Includes
2	Fuse
2	Fuse Holder
1	6IN DIN Rail

Fuse Specifications
Voltage Rating	1000V DC
Amperage Rating	10A, 15A, 20A, 30A
Max. Interrupting Rating	20kA - 1A-20A, 50kA - 25A-30A
Time Constant	≤ 2ms
Material	Body: Melamine, Caps: Copper Alloy
Environmental	RoHS Compliant
SERIES	SPF

Fuse Holder Specifications
Voltage Rating	1000V DC/600V AC
Amperage Rating	30A
SCCR Rating	50kA
Power Dissipation	4W Maximum
Fuse Type	10 X 38 mm up to 1000 V
Housing Material	Thermoplastic
Terminal Screws	Zinc Plated Steel, Phillips/Slotted Head
Pressure Plate	Nickel Plated Steel
Fuse Clip Material	Silver Plated Copper Alloy
Heat Shrink Color	Black
Operating Temperature	-55 °C to +125 °C
Flammability Rating	UL94 V-0
Approval	Self-certified 1000 V dc 50 kA uR & CSA 600V DC/AC 20 kA
Environmental	RoHS compliant, Lead (Pb) Free
